 用途與簡介/Brief Introduction：

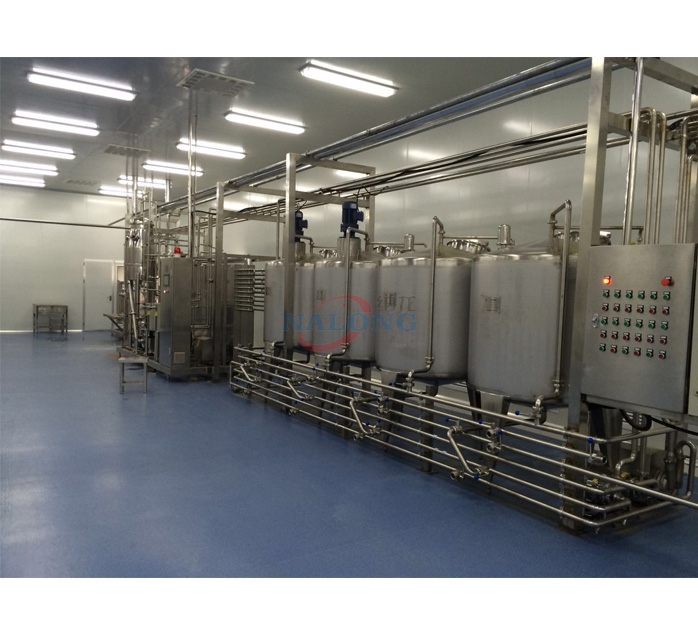

生物醫藥行業純化水設備采用當今更先進的雙級RO反滲透純化水技術，系統具有工藝先進、產水水質穩定、操作簡便、運行費用低、綠色環保、維護方便等優點；純化水輸送系統采用循環管路輸送，共11個用水點，采用雙面成型焊接，水質有保障，工藝美觀

Biological medicine industry purified water equipment using today's most advanced two-stage RO reverse osmosis water purification technology, the system has advanced technology, producing water quality stability, easy operation, low operation cost, green environmental protection, convenient maintenance; Purified water transportation system using the circulation line, a total of 11 points, water is made of double forming welding, quality guaranteed, craft and beautiful

特點/Characteristic：

◆系統采用全不銹鋼配置，并配置進品液位控制器；

  System adopts full stainless steel configuration and configuration into the product level controller

◆配備有純化水專用原水箱及中間水箱，配備數顯電子液位計空呼吸裝置，防止因自來水壓力不穩定對設備造成影響；

  Equipped with purified water for the original and middle water tank, equipped with digital display electronic level gauge air breathing apparatus, prevent a tap water pressure instability affect device;

◆配備純化水專用水箱，配備數顯電子液位計，旋轉噴淋清洗及空呼吸裝置；

  Equipped with special purified water tank, equipped with digital display electronic level gauge, rotating spray cleaning and air breathing apparatus

◆整套系統全自動控制，確保長效穩定運行，操作簡單方便；

  The system fully automatic control, ensure the long-term stable operation, the operation is simple and convenient

◆采用雙級反滲透配置，更大程度確保系統穩定運行；

  Adopt two-stage reverse osmosis configuration, the greatest degree to ensure system stable operation

◆系統集成式設計，占地面積小，美觀大方；

  System integration design, cover an area of an area small, the beauty is generous

◆采用美國海備能超低壓反滲透膜，脫鹽率高，能耗下降20%；

  Can adopt the sea for low pressure reverse osmosis membrane, desalination rate is high, the energy consumption by 20%;

◆管道清洗采用臭氧殺菌器結合氣液混合，清洗更徹底；

  Pipeline cleaning using ozone sterilizer with gas-liquid mixing, cleaning more thoroughly

◆采用進口陶氏低壓反滲透，脫鹽率高，使用壽命長，運行穩定，能耗低；

  Imported dow low pressure reverse osmosis, desalination rate is high, long service life, stable operation, low energy consumption

◆反滲透通過膜設計軟件及現場運行經驗，科學配置；

  Through reverse osmosis membrane design software and field operation experience, scientific configuration

◆反滲透系統采用全自動方式控制，主要元件采用進口元件，穩定性高，操作簡單方便；

  Reverse osmosis system using automatic mode control, the main components of imported components, high stability, simple operation and convenient

◆配備有UV紫外線及膜濾器，防止細菌對水質的影響；

  Equipped with UV ultraviolet (UV) and membrane filter, prevent bacteria affect water quality

◆具有無水保護和高、低壓力保護等多種裝置安全功能；

  With no water protection and high and low pressure protection device such as a variety of security features

◆控制系統采用全自動方式，穩定性高，操作簡單方便；

  Control system adopts fully automatic mode, high stability, simple operation and convenient

◆主要電器元件采用浙江正泰，穩定，美觀；

  The main electric elements adopt zhejiang chint, stable, beautiful

◆所有控制采用全自動方式，主要元件采用主流品牌元件，穩定性高，操作簡單方便；

  All control using automatic mode, the main components using mainstream brand components, high stability, simple operation and convenient

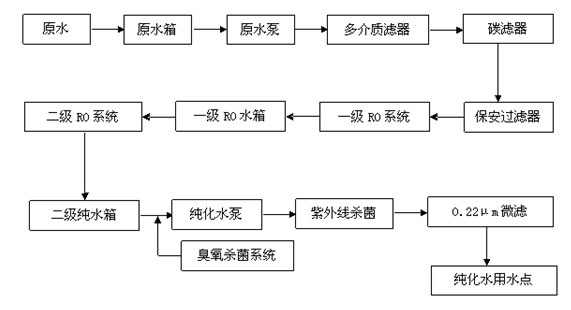

三、系統工藝流程圖
