NLYYS眼藥水/電子煙油灌裝加塞旋蓋機

詳細介紹

用途與簡介/Brief Introduction:

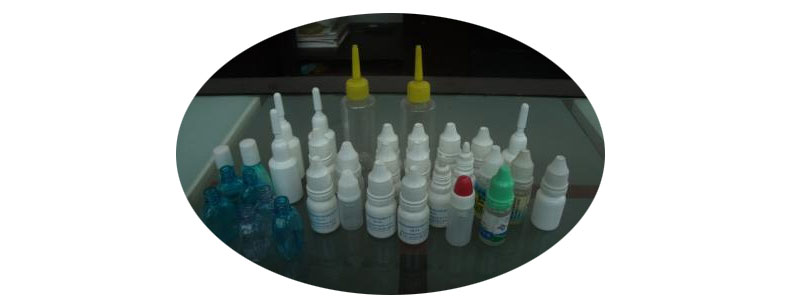

本機適用于2-30ML各種材質的圓形扁形塑料或玻璃瓶的眼藥水灌裝、電子煙油等小劑量灌裝.本機由高精度凸輪分度機構提供分度等分盤定位上塞上蓋;加速度凸輪傳動提供旋蓋頭的升降;恒扭矩旋蓋;蠕動泵計量灌裝;觸摸屏控制.無瓶不灌裝,不加內塞,外蓋.具定位精確,傳動平穩,保護瓶蓋,計量準.操作簡單等優點。

This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.



特點/Characteristic:

◆微電腦設定、裝量精確、操作方便。

Man-machine dialogue system setting,visual convenient operation ,accurate filling level。

◆主機轉速可進行無級變頻調速。

the mainframe running speed is stepless frequency conversion.

◆生產量自動定量控制。

the product quantity can be controlled.

◆多種故障提示功能(如低氣壓。無灌裝、無內塞等)。

Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).

◆自動停機功能,對任一軌道出現連續無灌裝、無內塞情況可自動停機。

Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技術參數/Main Technical Parameters:

適用規格Filling Volume

2-30ml

生產能力Productivity

30-60瓶/分  70-100瓶/分

30-60bottles/min  70-100bottles/min

灌裝精度Filling Precision

≤±1%

電源 Power Supply

380V/50Hz

旋(軋)蓋率Capping Rate:

≥99%

自動上塞率Stoppering rate

≥99%

氣源Air Supply

1.3 m3/h    0.4-0.8Mpa

功率 Power

2.0 kw

機器凈重Weight

550 kg

外形尺寸Dimension

1800*1000*1500mm
